Symmetric Bending Machine
- Direct supply from the manufacturer
- Order phone：0086-18915699468
- E-mail：megan@yuetaimachine.com
Detail
|
No. |
Item |
Description |
|
|
Model |
YT-SW-38 |
YT-SW-50 |
|
|
1 |
Motor Power |
4KW |
5.5KW |
|
2 |
Max. Size |
Φ38X1.8T |
Φ50X2T |
|
3 |
Bending Radius |
38-200mm |
45-300mm |
|
4 |
Double Bending Range |
170-1450mm |
190-1650mm |
|
5 |
Max. Bending Angle |
1850 |
1850 |

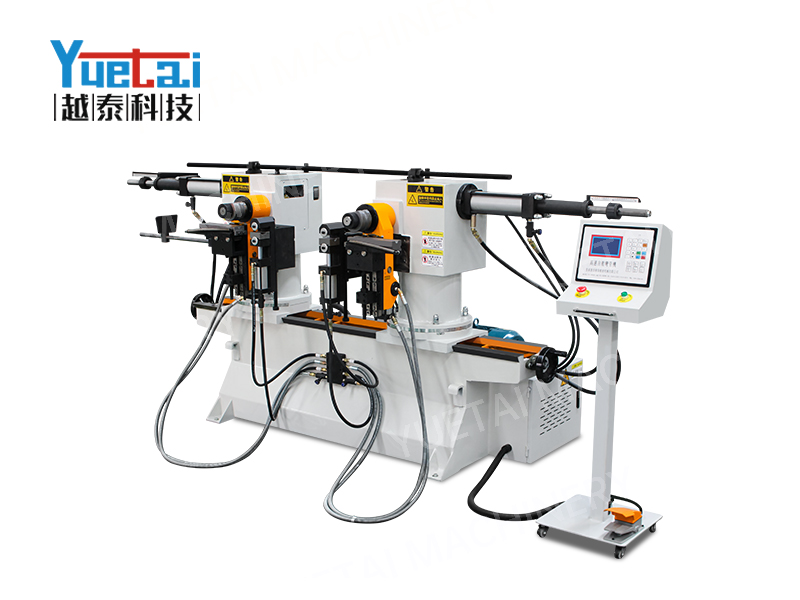

Symmetric Bending Machine

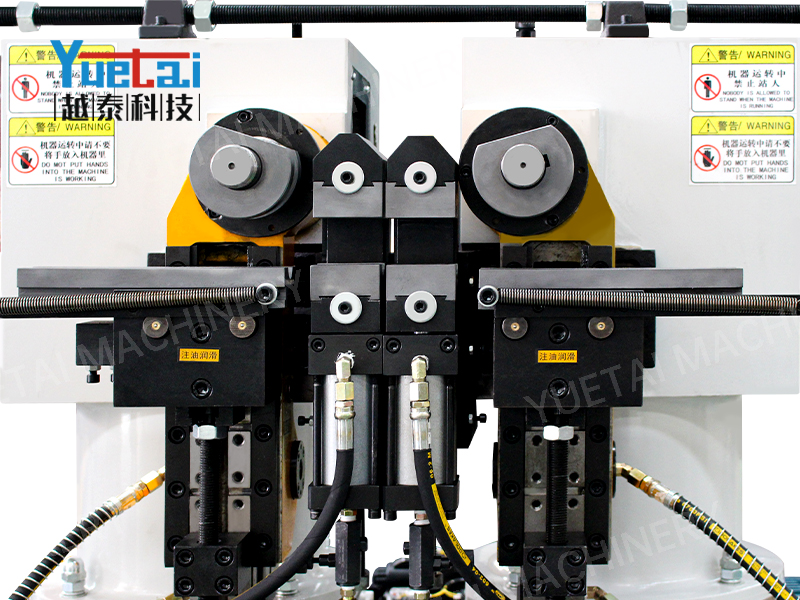

- 90 degree head rotation allows for completion of 3 Dimensional part with accuracy
- Stationary clamps to maintain the tube in position before bending

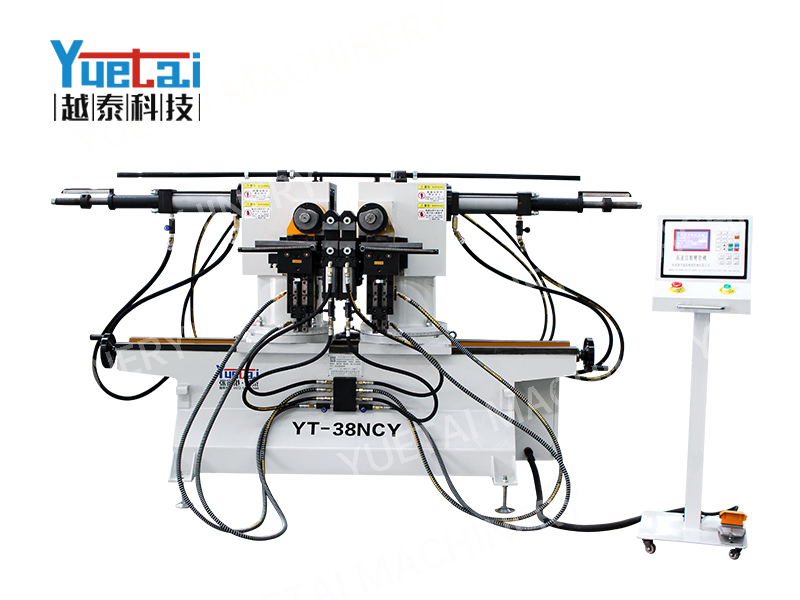

Symmetric Bending Machine
- Can process 2 bends and 2 tubes at the same time
- Center distance between bends from 196 mm to 1,700 mm
Symmetric Bending Machine

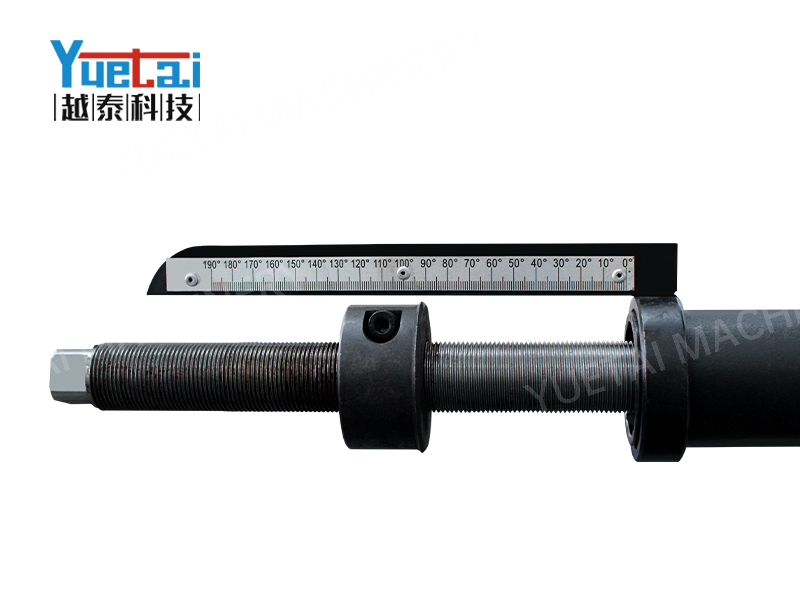

- Individual bending angle setting for each bending head
- Full-cycle bending + half-cycle bending
Symmetric Bending Machine

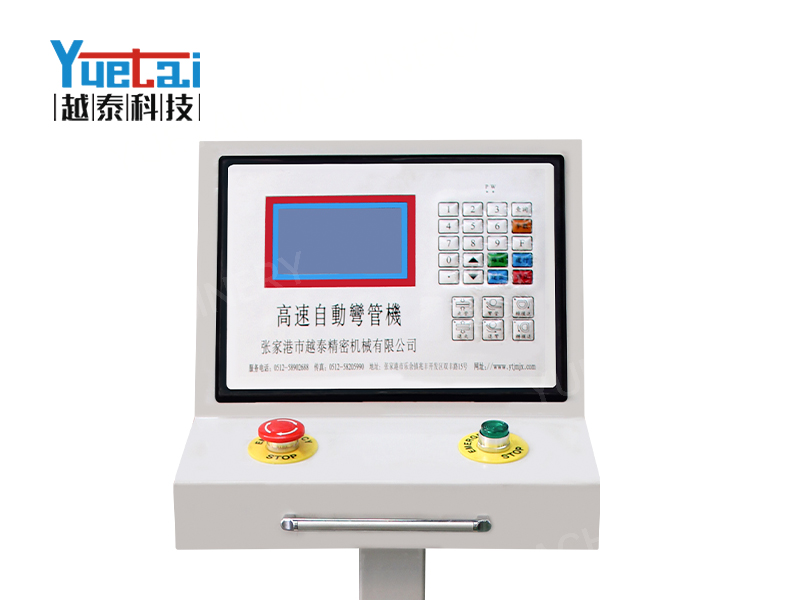

- NC control unit with Touch Screen
- Standard with 90° head rotation for 3D Tube Bending
- Suitable for various materials such as steel, stainless, carbon steel

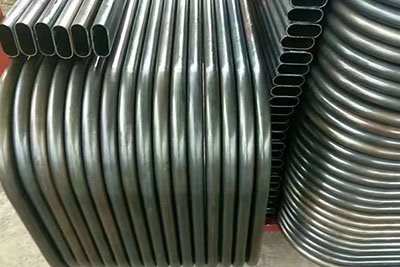

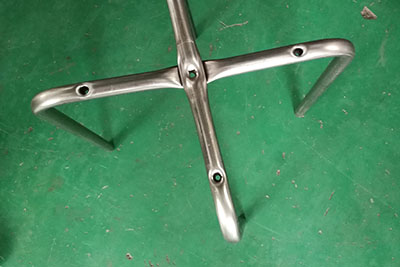

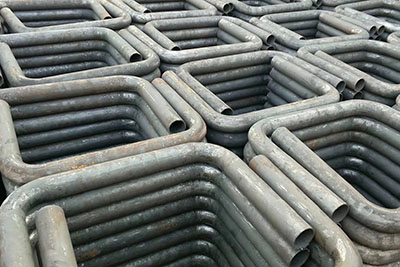

Application Industry
