Saw Blade Grinding Machine
- Direct supply from the manufacturer
- Order phone：0086-18915699468
- E-mail：megan@yuetaimachine.com
Detail
|
No. |
Machine Model |
YT 450 |
|
1 |
Outside Diameter of Blade |
Φ80-1000mm |
|
2 |
Teeth Distance |
Max. 25mm |
|
3 |
Teeth Depth |
Max. 8mm |
|
4 |
Cutting angle |
0°~30° |
|
5 |
Feeding speed |
45-180 teeth per min |
|
6 |
Blade thickness |
Max. 5mm |
|
7 |
O.D of grinding wheel |
Φ90-150mm |
|
8 |
Grinding motor |
3/4HP |
|
9 |
Conveying motor |
1/2HP |
Saw Blade Grinding Machine

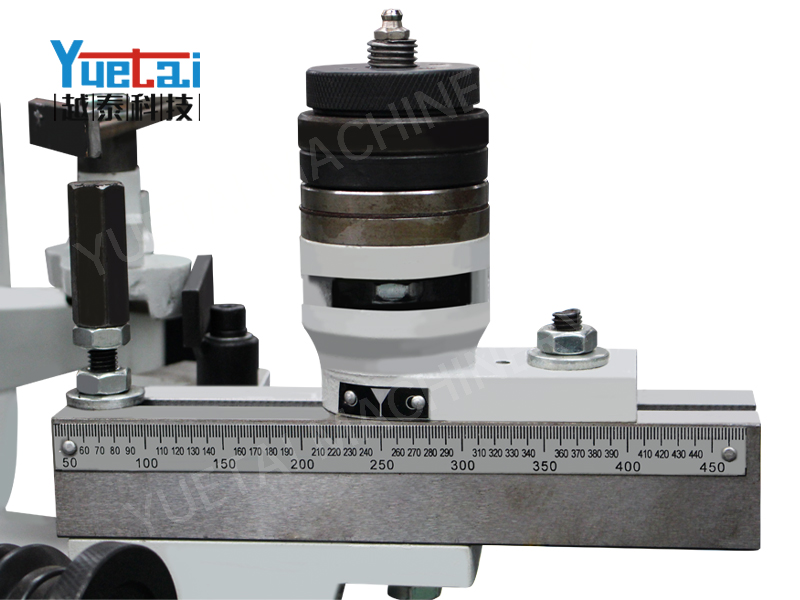

- This machine is easy to operate, the cutting angle, tooth shape and tooth depth on the saw are easy to adjust, with a high precision, sharp and durable.
Saw Blade Grinding Machine
- Quick adjustments can be made according to the various thicknesses of the coping saw bits.
Saw Blade Grinding Machine

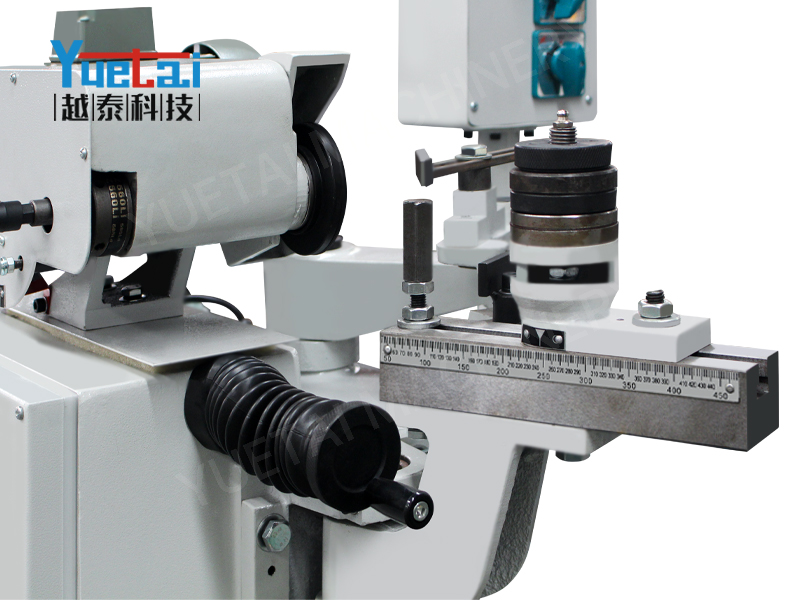

- The head section can be adjusted or swinged upward or forward willingly, coping and beveling can be made without exchanging the abrasive disk.
