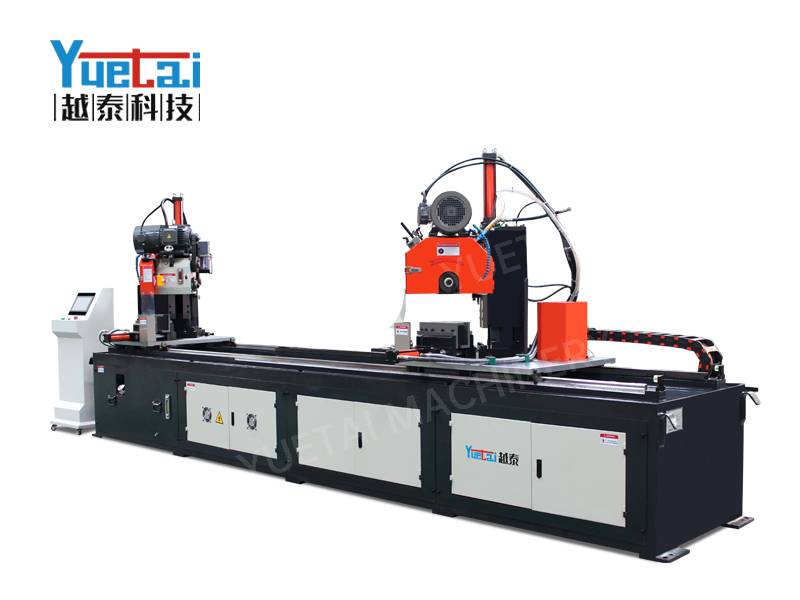

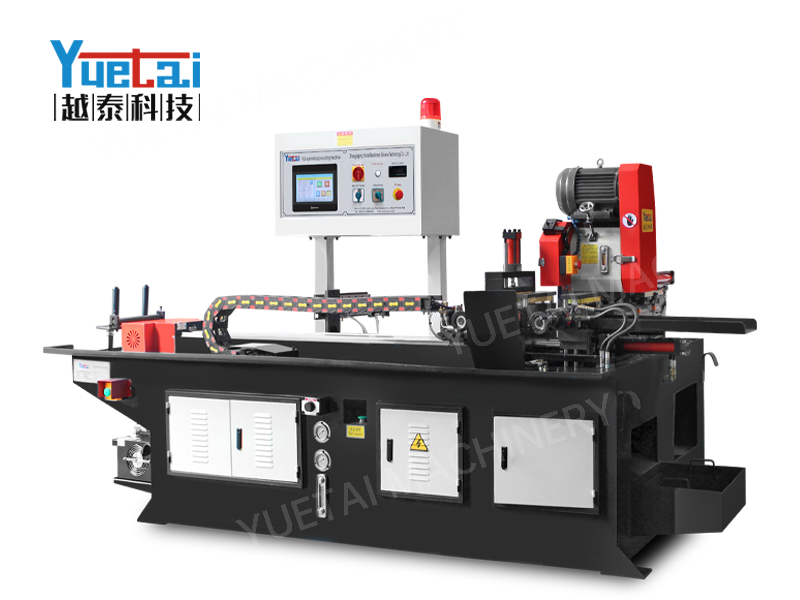

CNC Full Automatic Pipe Cutting Machine
- Direct supply from the manufacturer
- Order phone：0086-18915699468
- E-mail：megan@yuetaimachine.com
Detail
|
Item |
Type |
Max. Processing Dimension |
Cutting position |

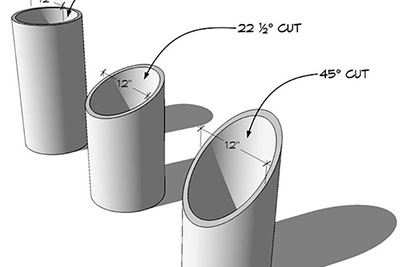

Cutting angle |
|
1 |
○ |
Φ120 mm *8mm |
Straight |
90° |
|
2 |
□ |
120mm*120mm*6mm |
Straight |
90° |
|
3 |
∟ |
150mm*60mm*10mm |
Straight |
90° |
|
4 |
● |
Φ50mm |
Straight |
90° |
|
5 |
■ |
45mm*45mm |
Straight |
90° |
|
No. |
Item |
Description |
|
Model |
YT425CNC-3A |
|
|
1 |

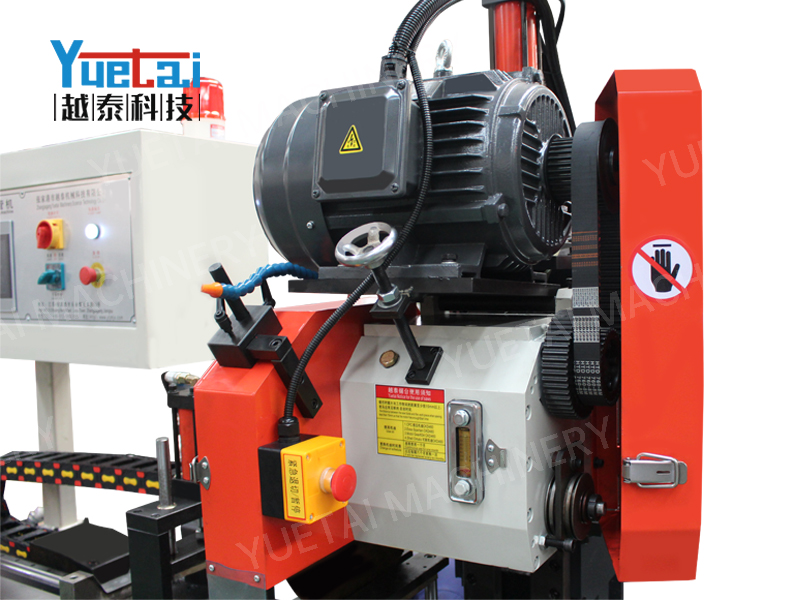

Motor power |
Standard 3kw/4kw (with bigger motor power) |
|
2 |
Voltage |
380V 50HZ |
|
3 |
Motor power for cooling pump |
380v 90w |
|
4 |

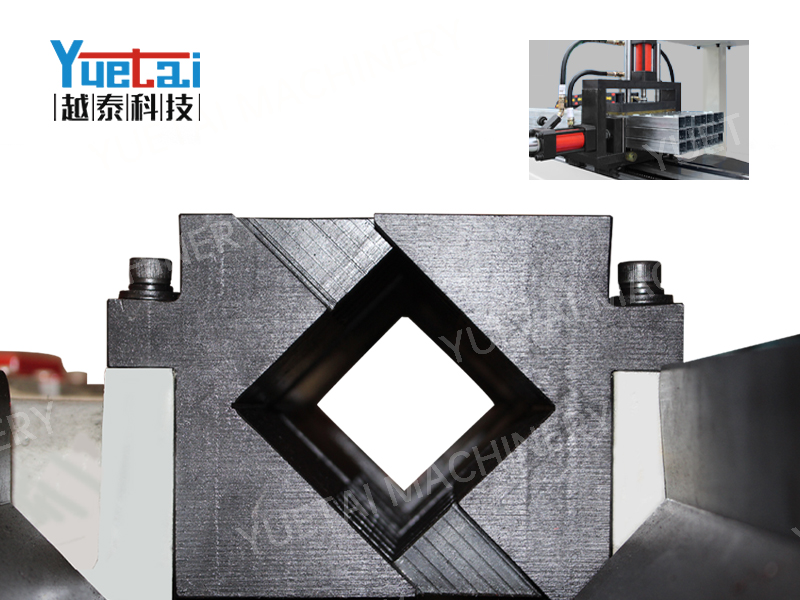

Max. Clamp Degree |
160mm |
|
5 |

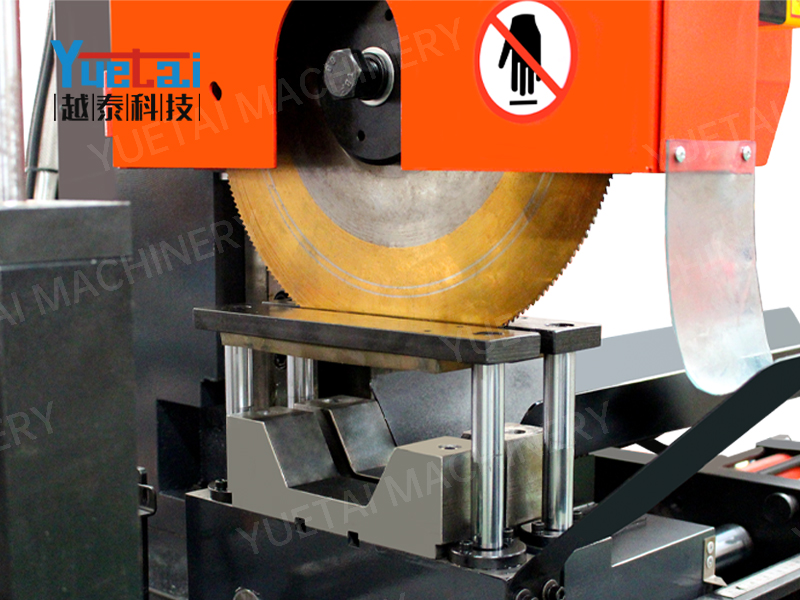

Suitable Blade |
Φ300～Φ450mm |
|
6 |
Sawing Angle |
90° |
|
7 |
Automatic Feeding Length |
1000mm/1500mm/2000mm |
|
8 |
Servo Motor |
Mitsubishi |

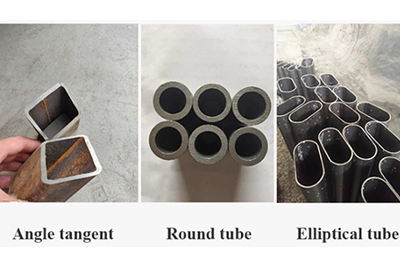

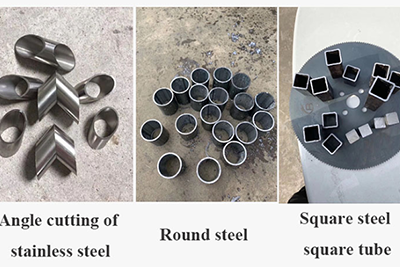

- Round Tube
- Square Tube
- Rectangular Tube
- Oval Tubes
- L-shaped profiles
- C-shaped profiles
- Mild Steel, Stainless Steel, and Aluminum materials

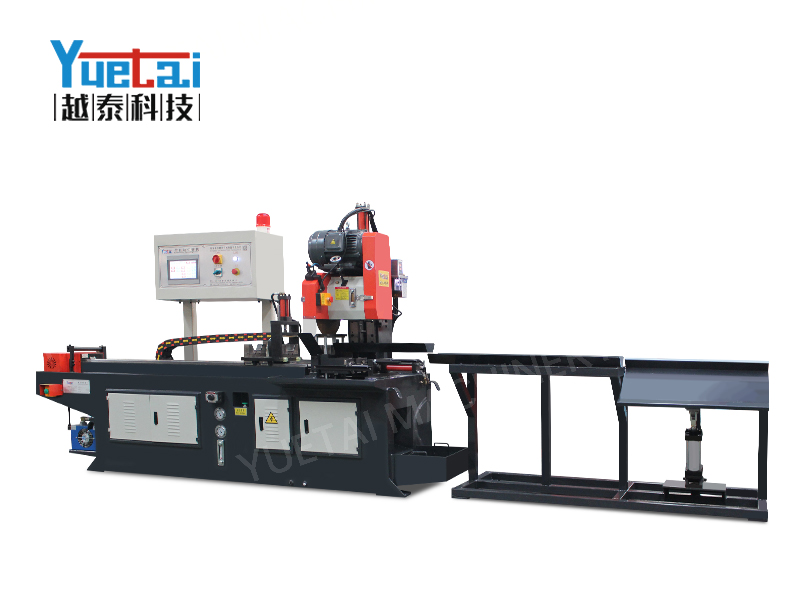

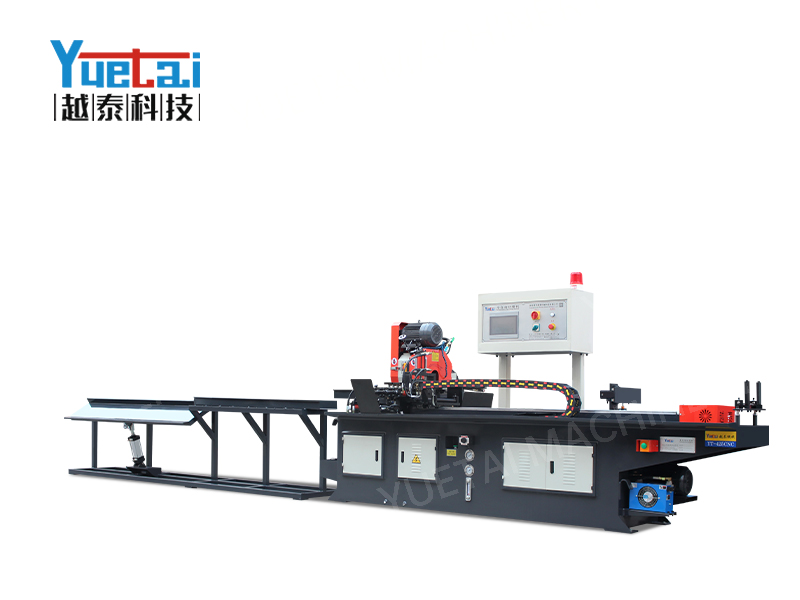

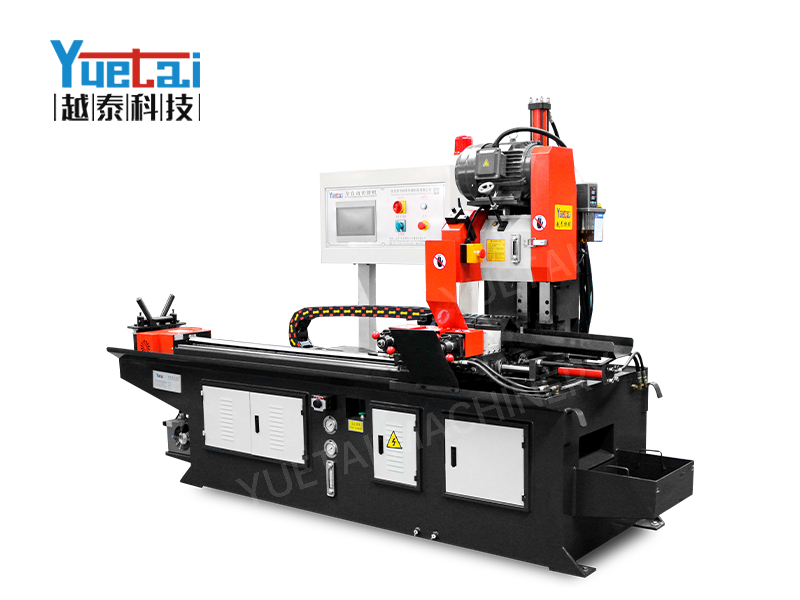

CNC Full Automatic Pipe Cutting Machine
- CNC Tube Cutting
- Servo Motor Feeding
- Touch Screen Control
- Mitsubishi PLC and Mitsubishi Servo Motor
- Intuitive and user-friendly interface with Touch Screen System
- Ability to program 5 cutting lengths per bar
- Digital counter for automatic operation (Cutting length / Quantity set up / Counter)
- Fast Approach Speed
- Low Speed during blade entry
- High Speed after cutting through the tube's wall
- Lowest Speed at re-entry into tube's lower wall

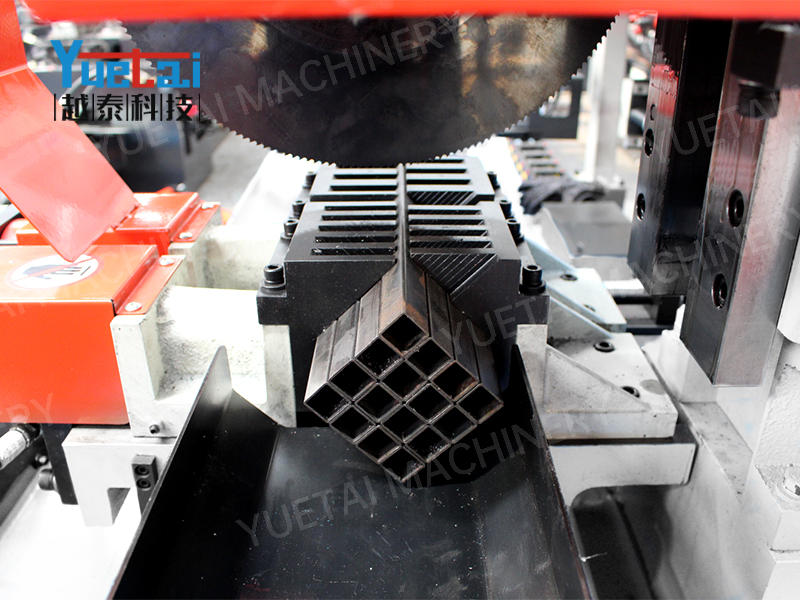

- Automatic Tube Bundle Loading
- Automatic Material Alignment
- Machine in Stock for Quick Delivery Time
- It is integrated with Automatic Loading, Feeding, Deburring, Chamfering and End Forming.
