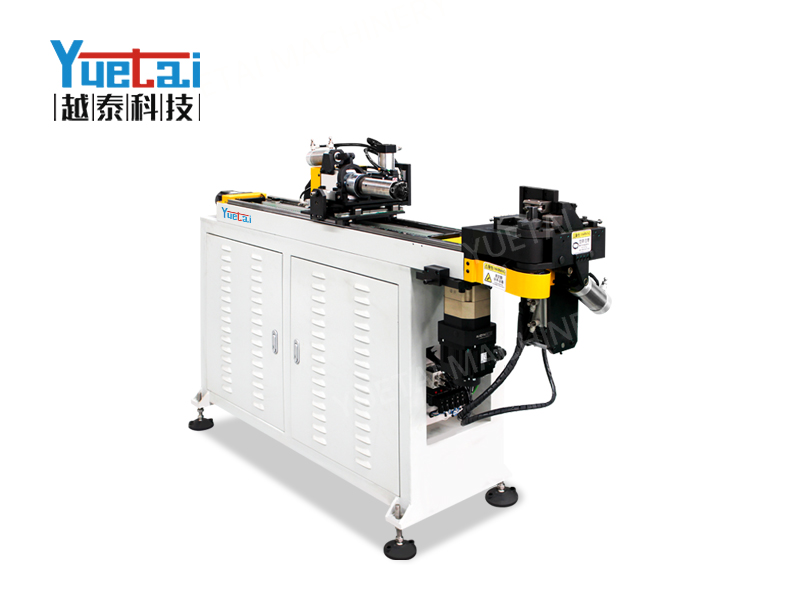

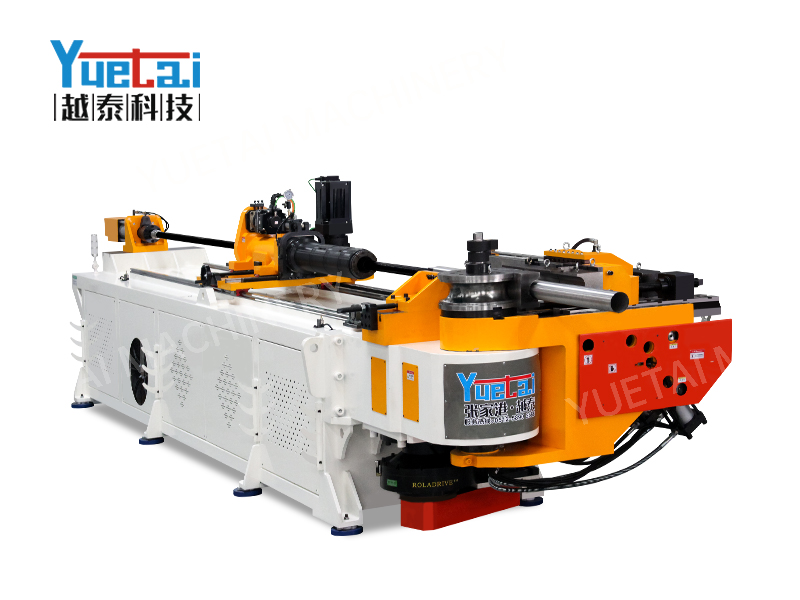

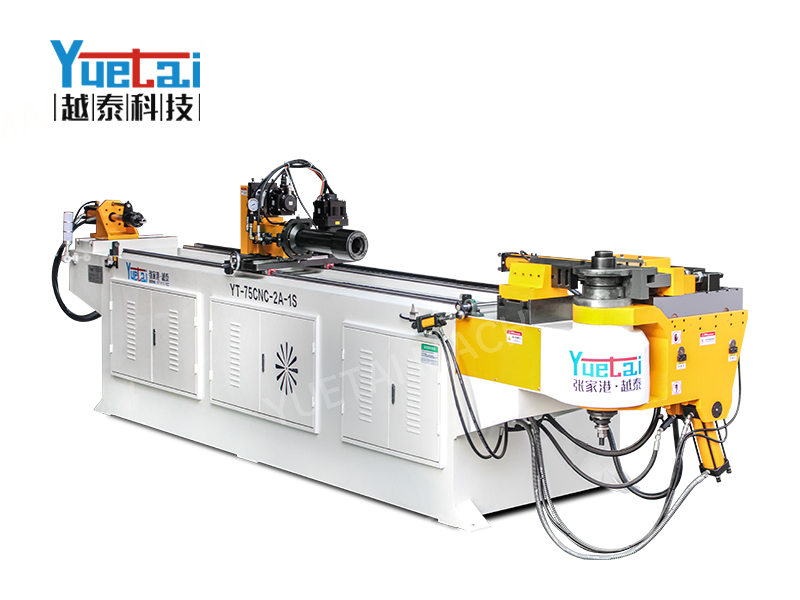

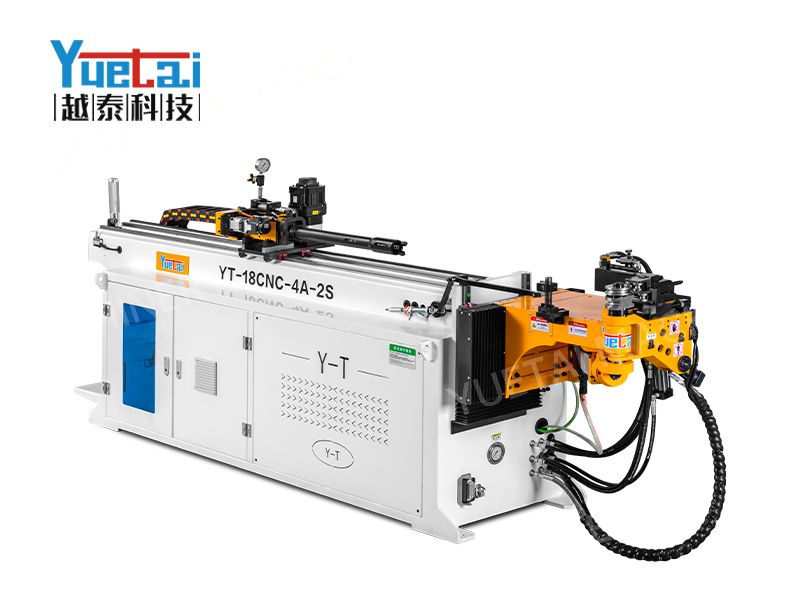

CNC Full Automatic Pipe Bending Machine

Direct supply from the manufacturer
Order phone:0086-18915699468
E-mail:megan@yuetaimachine.com

Detail

No.

Item

Description


Model

25CNC

38CNC

50CNC

63CNC

75CNC

89CNC

114CNC

168CNC

219CNC

1

Max Bending capacity

Round tube Φ25x2mm

Round tube Φ38x2mm

Round tube Φ50x2.5mm

Round tube Φ63x4mm

Round tube Φ75x4mm

Round tube Φ89x6mm

Round tube Φ114x8mm

Round tube Φ168x14mm

Round tube Φ219x16mm

2

Max Bending Radius

280

280

280

350

400

450

520

750

800

3

Min. Bending Radius

1.2D

1.2D

1.2D

1.2D

1.2D

1.2D

1.2D

1.2D

1.2D

4

Standard Mandrel Length

2200mm

2500mm

2800mm

3000mm

3200mm

3500mm

4500mm

5000mm

6000mm

5

Bending Accuracy

±0.1


Control Panel

Mitsubishi PLC


Method of Input Data

Coordinate (X,Y,Z)
Working Value(Y,B,C)

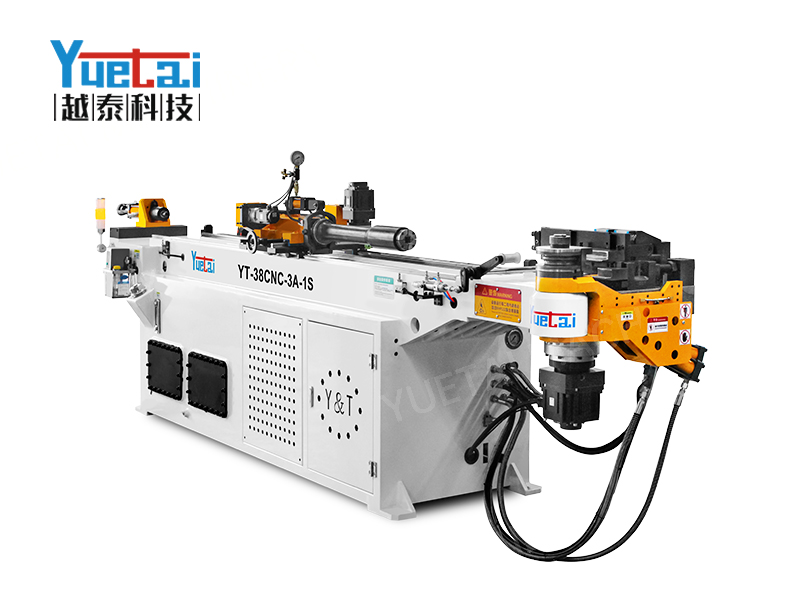

CNC Full Automatic Bending Machine
  • Equipped with 3 4 electric CNC axes
  • Multiple tube bending stacks
  • Yuetai tube benders can offer one of the highest performance solutions available in the market

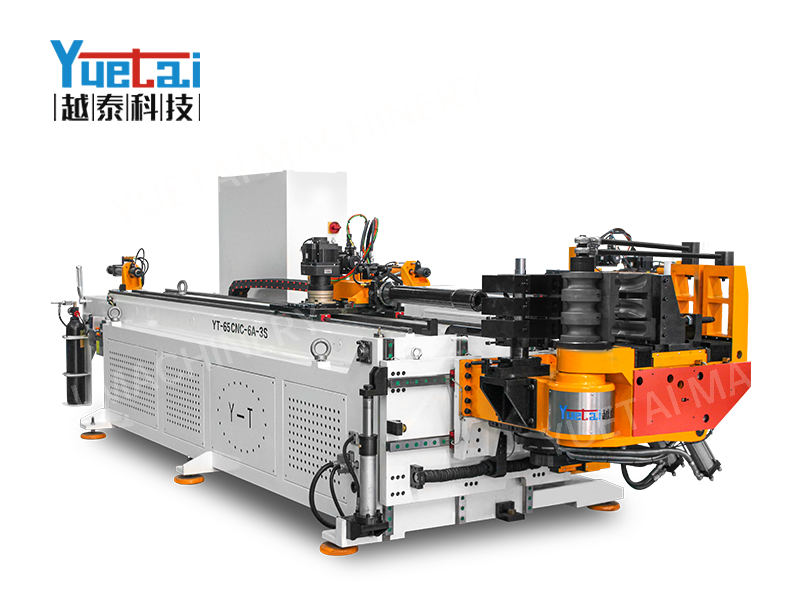

CNC Full Automatic Bending Machine

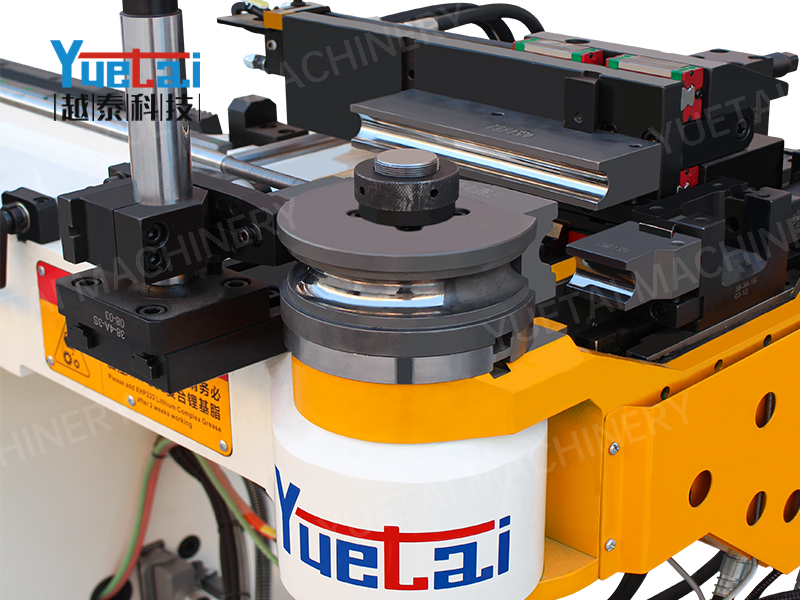

  • Side positioned bending head and carriage
  • Centralized lubrication for sliding area Automatic mandrel lubrication

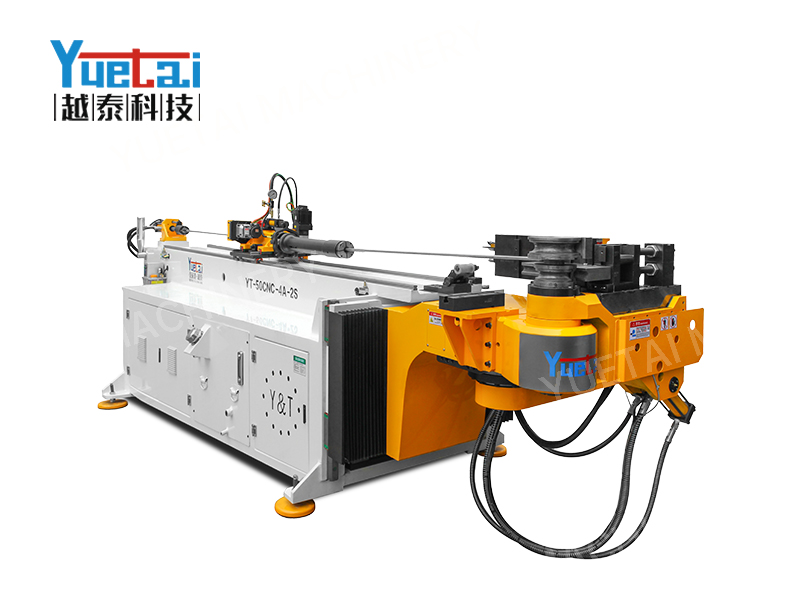

CNC Full Automatic Bending Machine
  • Controls software
  • Single or multi-stacks
  • Independent pressure die system for each tube bending stack

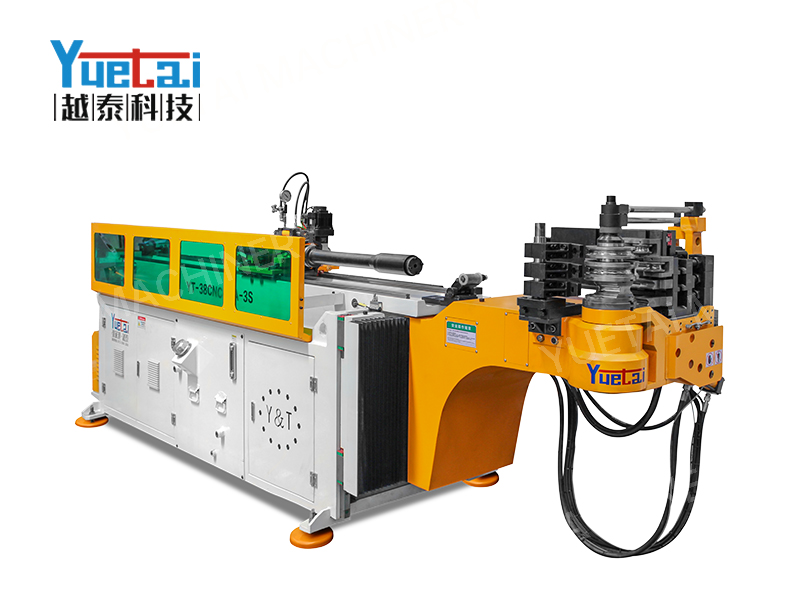

CNC Full Automatic Bending Machine

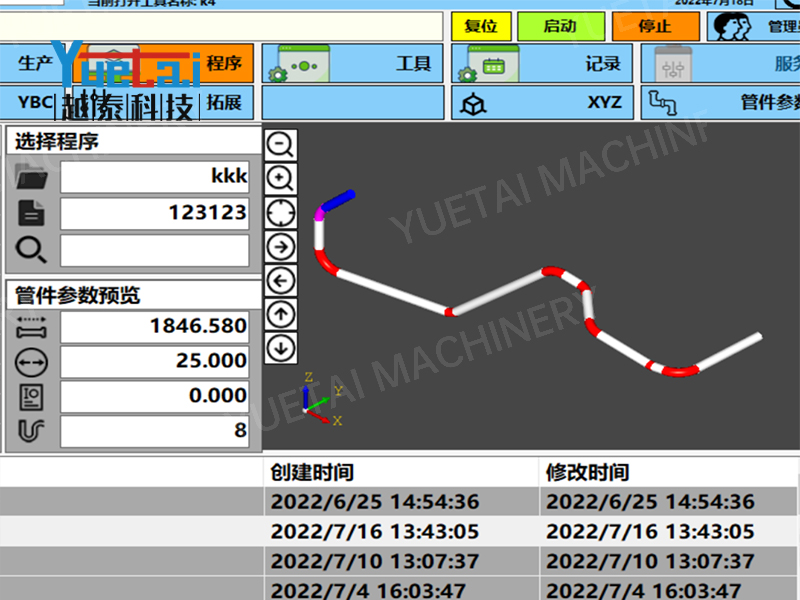

  • Wiper die seat and lubrication 3D Display and Rotation of Parts
  • XYZ and YBC coordinates conversion Mirroring and image reversal of parts
CNC Full Automatic Bending Machine
  • Fully Automatic and Cost-Effective.

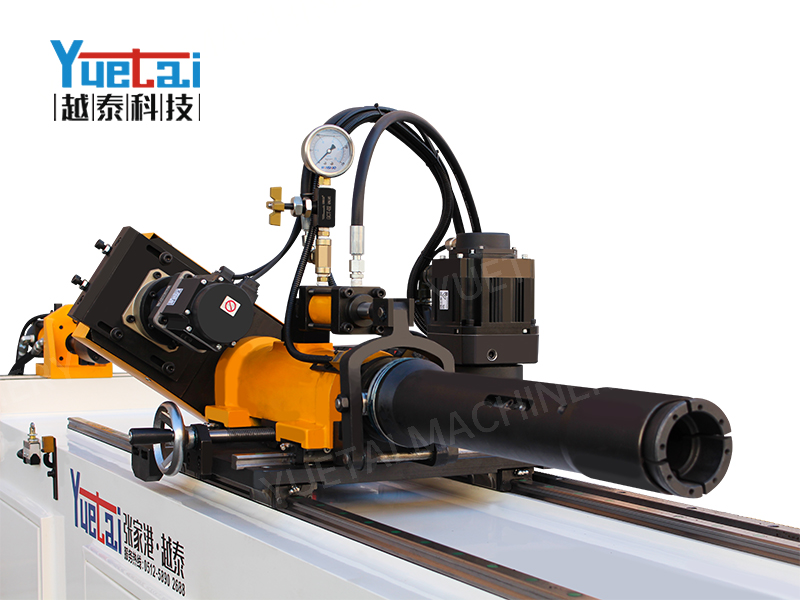

  • This Pipe Bending line equipped with 3 programmable axes:
Feeding – Electric Servo;
Rotation – Electric Servo;
Tube Bending – Hydraulic (NC).

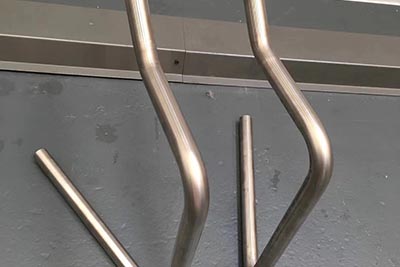

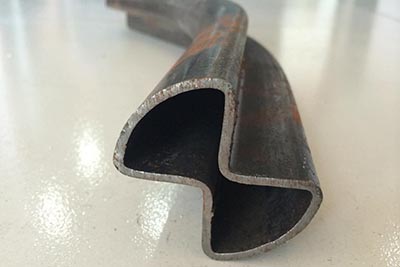

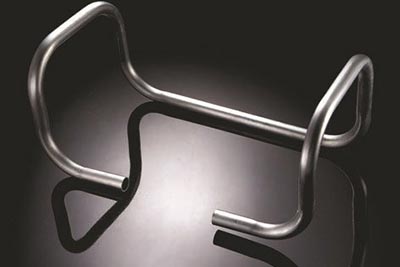

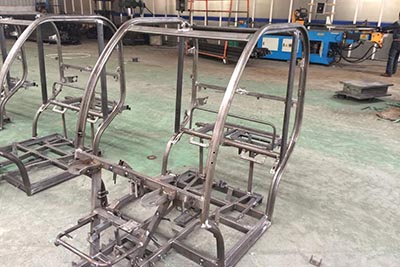

Application Industry
