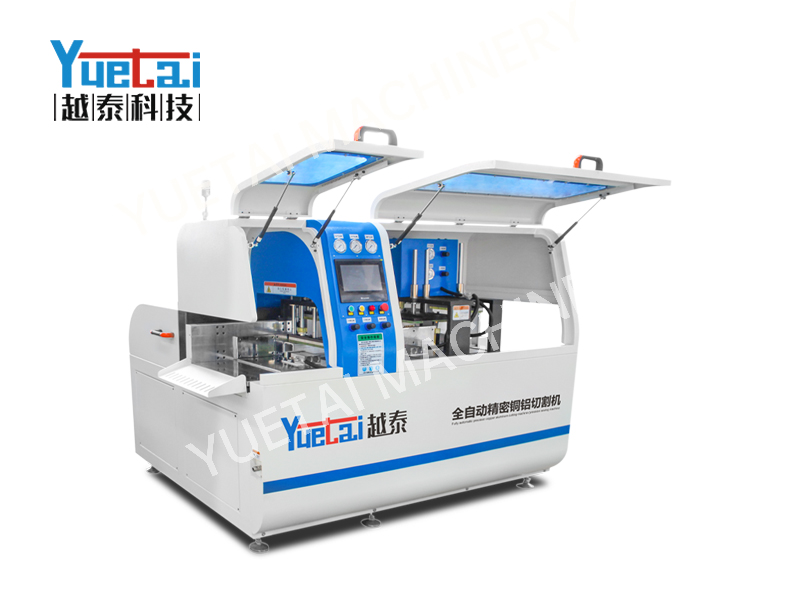

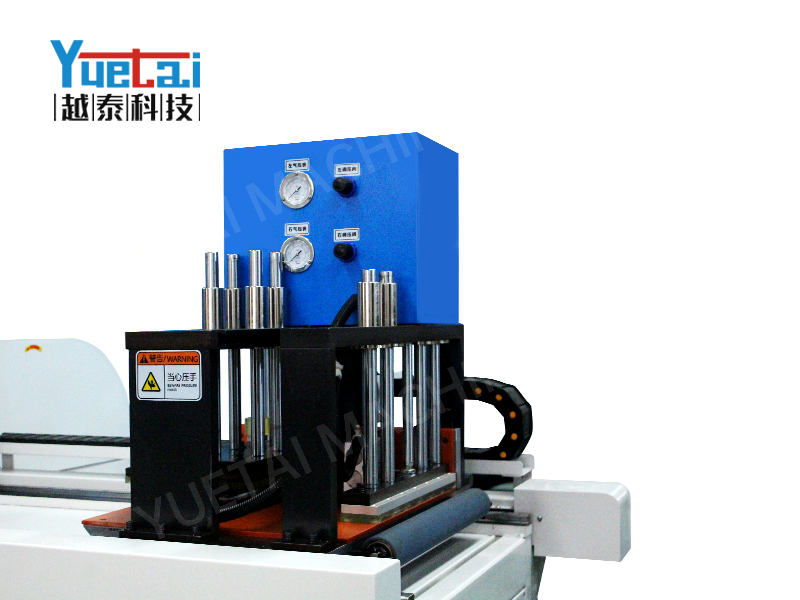

Full Automatic Aluminum Profile Cutting Machine
- Direct supply from the manufacturer
- Order phone：0086-18915699468
- E-mail：megan@yuetaimachine.com
Detail
|
Item |
Type |
Max. Processing Dimension |
Cutting position |
Cutting angle |
|
1 |
○ |
Φ120 mm *8mm |
Straight |
90° |
|
2 |
□ |
120mm*120mm*6mm |
Straight |
90° |
|
3 |
|
100mm*200mm |
Straight |
90° |
|
|
180mm*160mm |
Straight |
90° |
|
|
3 |
∟ |
150mm*60mm*10mm |
Straight |
90° |
|
4 |
● |
Φ50mm |
Straight |
90° |
|
5 |
■ |
45mm*45mm |
Straight |
90° |
|
No. |
Item |
Description |
|
Model |
YT455CNC |
|
|
1 |

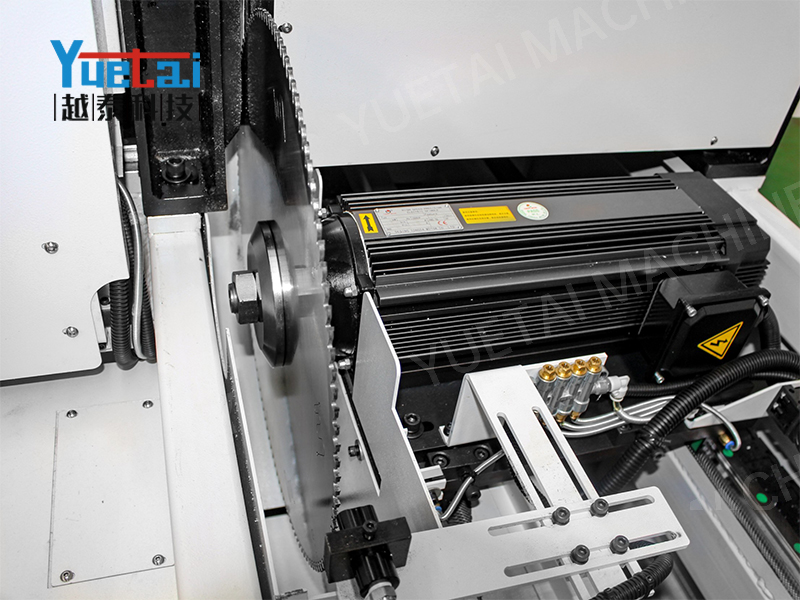

Motor Power |
4kw |
|
2 |
Voltage |
380V 50HZ |
|
3 |
Max. Feeding Distance |
750mm |
|
5 |
Suitable Blade |
Φ355～Φ455mm |
|
6 |
Rotating Speed |
3200rpm |
|
Dimension |
1950×1300×1200mm |
|
|
Weight |
850kg |
- Saw blade rotating positioning at any angle between 45°and 90°
- It can cut one piece or bundle cutting at the same time, suitable for mass production
- Hidden sawblade goes up and down safely
- Foot switch can control automatic loading and cutting
- Automatic lubricating improves service of sawblade and fineness of cutting surface
- The pneumatic driving system is used in profiles clamping and cutting
- One head or double heads are available by different machine capacity request
- Double sawblades cut simultaneously

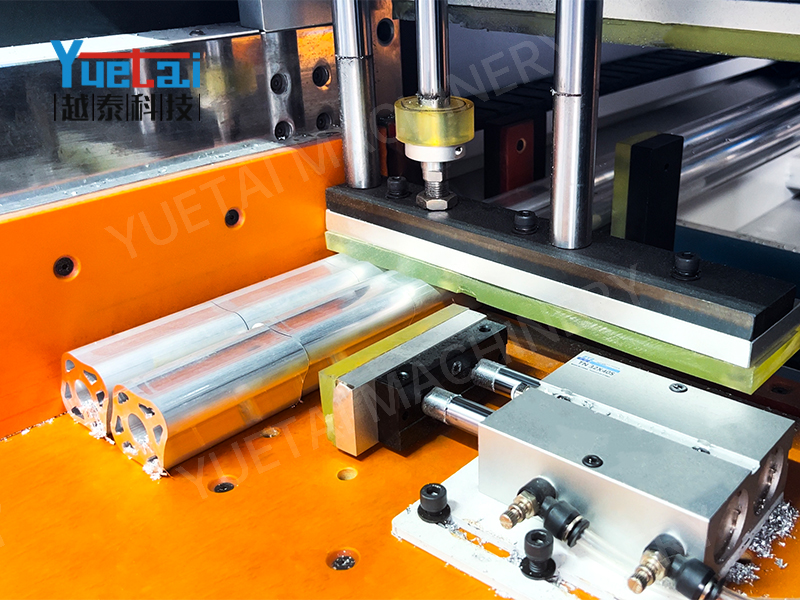

- Pneumatically operated workpiece clamping
- Automatic oil lubrication while in cutting
- It saves 2/3 of time than the conventional cutting equipments.
- Fully guarded sawblade allows safe loading and unloading of workpieces
- Single or multiple workpieces can be cut at a time, making this unit ideal for small lot or high production demands.
