PRODUCT

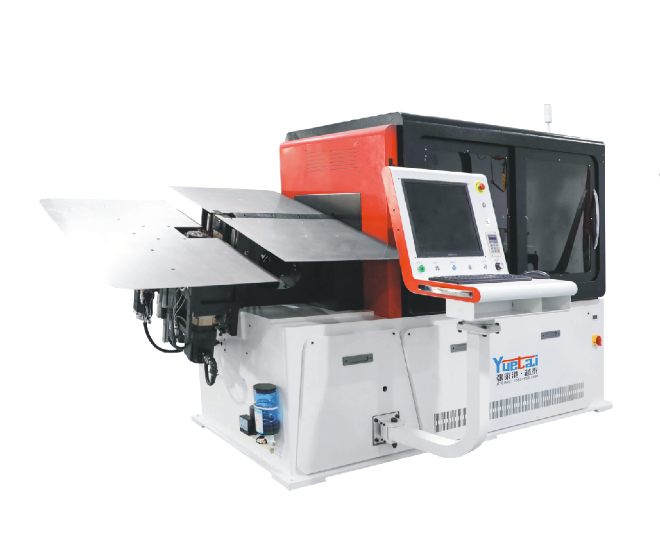

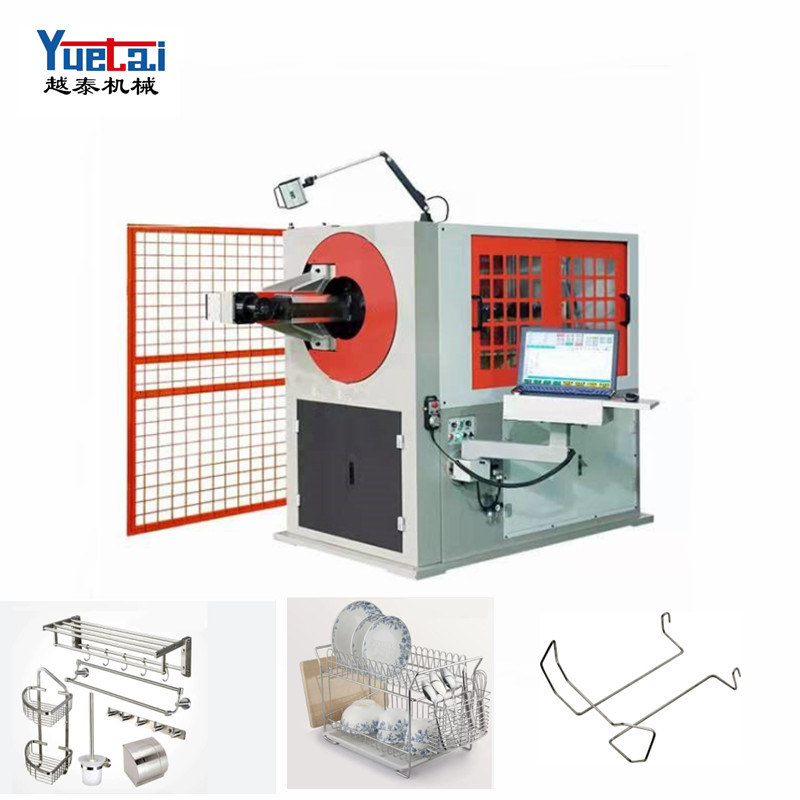

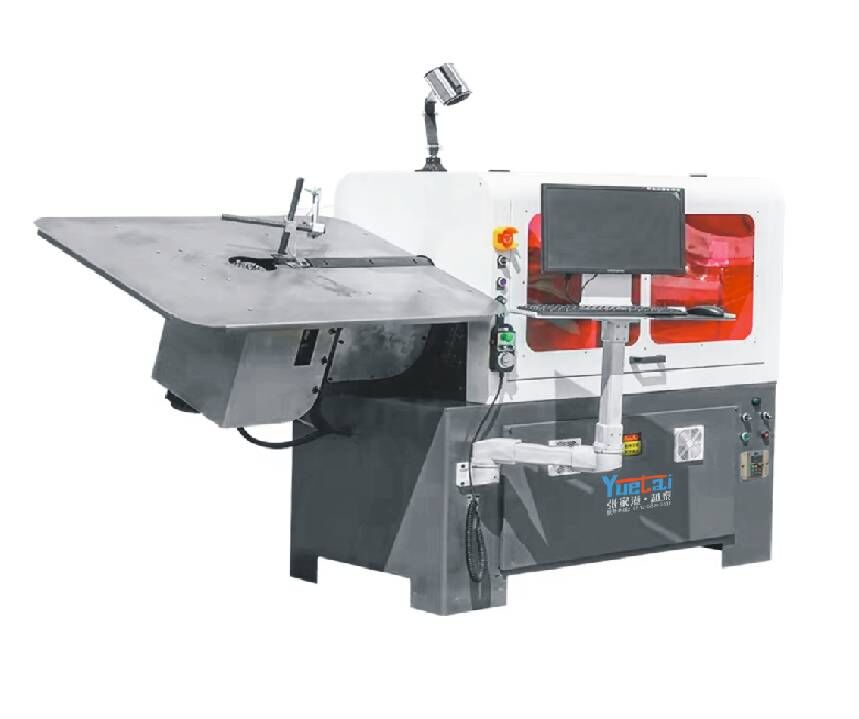

5 Axis 3D CNC Wire Bending Machine
- Direct supply from the manufacturer
- Order phone：0086-18915699468
- E-mail：megan@yuetaimachine.com
Detail
|
Wire Diameter |
Wire Feeder |
Straighten |
Bending |
Cutting |
|
Φ2.0~8.0mm |
Yes |
Yes |
Yes |
Yes |
|
Φ4.0~12.0mm |
Yes |
Yes |
Yes |
Yes |
|
Φ6.0~14.0mm |
Yes |
Yes |
Yes |
Yes |
|
Φ8.0~16.0mm |
Yes |
Yes |
Yes |
Yes |
|
Production Name |
CNC 3D wire bending machine |
|||
|
Machine Type |
CNC |
|||
|
Applicable Industries |
automative parts manufacuring, daily hardware, garden machinery, supermarket |
|||
|
Core Components |
Motor, computer |
|||
|
Key Selling Points |
high precision forming, high efficiency and steable performance,affordable |
|||
|
applicable material |
low carbon steel, stainless steel and so on |
|||
|
applicable Wire Size |
Ø3.0—Ø8.0mm（Tensile strength≦500N） |
|||
|
Number of Axis |
5 axis/7 axis |
|||
|
Number of feeding rollers |
3 pairs |
|||
|
Input power |
380V/50HZ/3P or Customized |
|||
|
Machine Size |
2600*2200*2000mm |
|||
|
Weight |
2800kg |
|||
High Precision
- Assembly and testing are professionally completed by a senior technical team. After the machine is installed, the load is run-in for more than 100,000 times
- Feeding accuracy: 300mm±0.1
- Angle accuracy: ± 1°
High Efficiency
- Imported high-speed servo motors.
- Compared with similar equipment, machine speed of the same product is more than 30% higher.
High Automation
- Single-head, double-head, tablet and combined equipment are all excellent works of technical research and development team.
- The R&D team launches a new product every year according to user needs.
