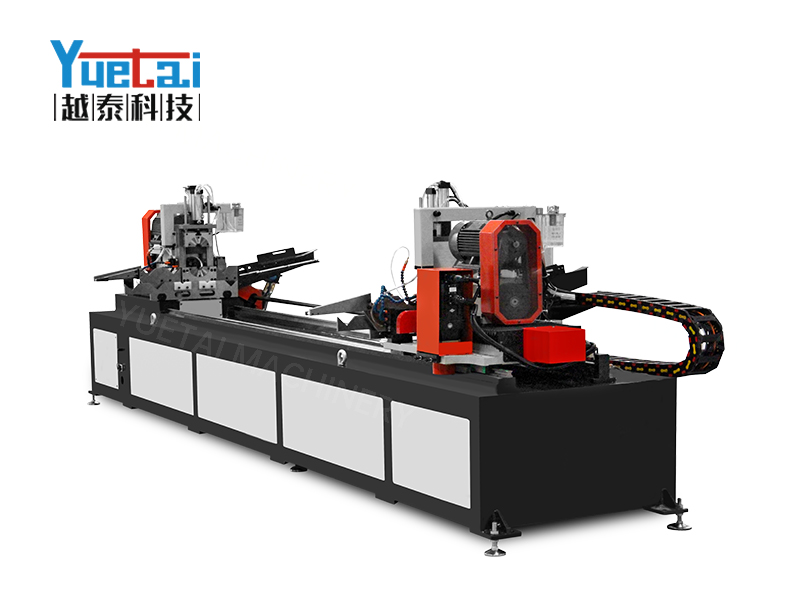

Double Head Chamfering Machine
- Direct supply from the manufacturer
- Order phone：0086-18915699468
- E-mail：megan@yuetaimachine.com
Detail
|
No. |
Item |
Description |
|
1 |
Model |
YT 50 |
|
Processing capacity |
Φ12-80mm |
|
|
2 |
Suitable material |
Steel pipe, iron pipe, aluminum pipe, copper pipe, Stainless steel, bar etc |
|
3 |
Working length |
200-600mm |
|
4 |
Main motor power |
3HP X 6P |
|
Compressed air |
6-9kgs/cm2, 120ml/min |
|
|
5 |
Machine weight |
800kg |
|
6 |
Working precision |
±0.1mm |
|
7 |
Machine dimension |
1300x900x1500mm |
Double Head Chamfering Machine

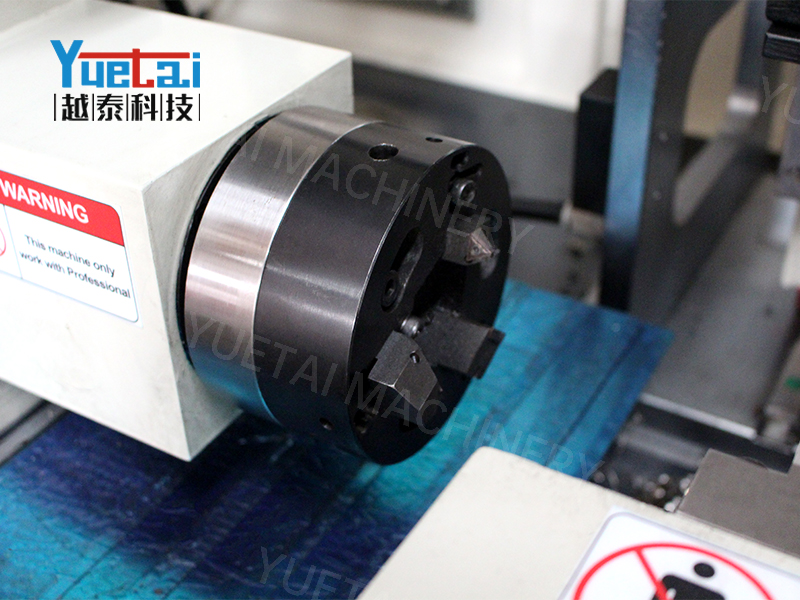

- Inside + Outside Chamfering
- Facing
- Centering
- Deep Chamfering
- Radius Chamfering
- Length Measuring

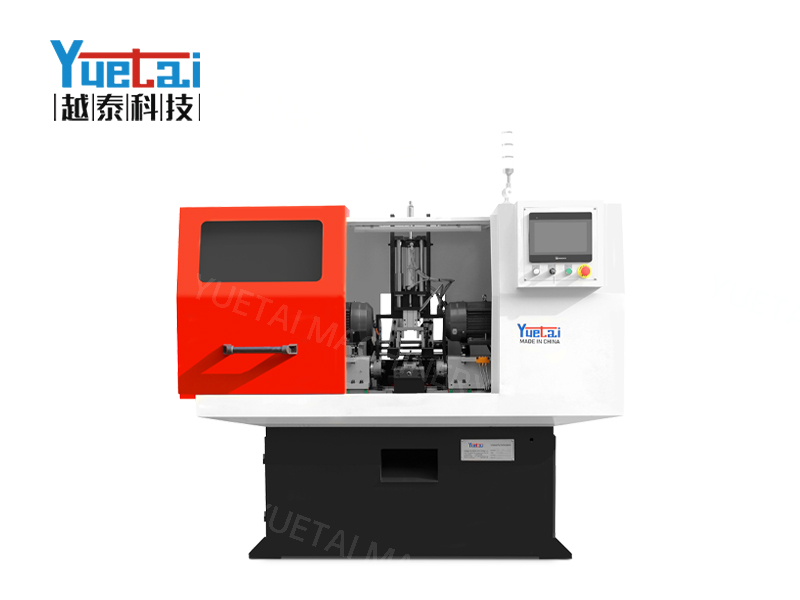

Double Head Chamfering Machine
- Fully automatic chamfering and Length Measuring system, with 2 types of loading magazine:
- Rack – Sliding Magazine ( Standard )
- BTM – Bundle Loading Magazine (Optional )
Double Head Chamfering Machine

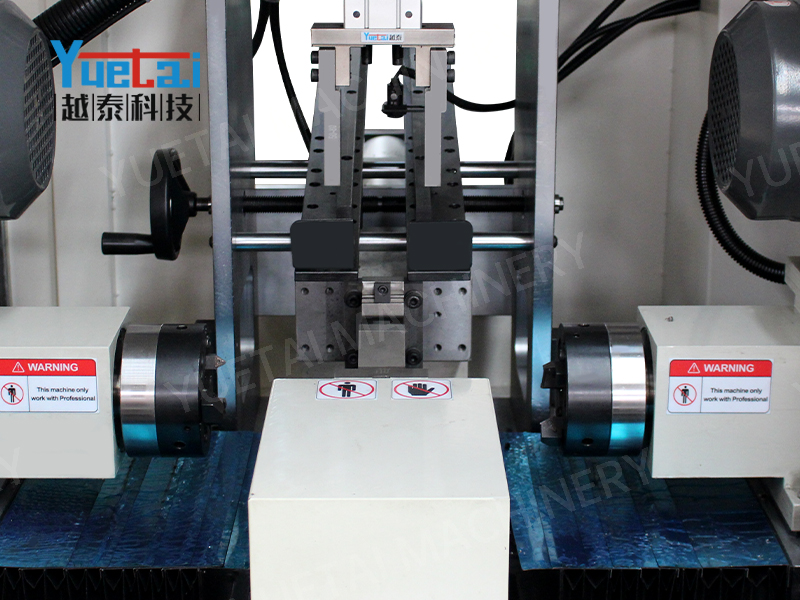

- External and internal chamfering facing with length measuring in 1 process for both sides of the tube, with optional radius (round) chamfering
Double Head Chamfering Machine
- It is possible to simultaneously chamfer both ends of a tube, with up to 3000 mm in working length, and measure their lengths with tolerances as low as +- 0.02 mm
