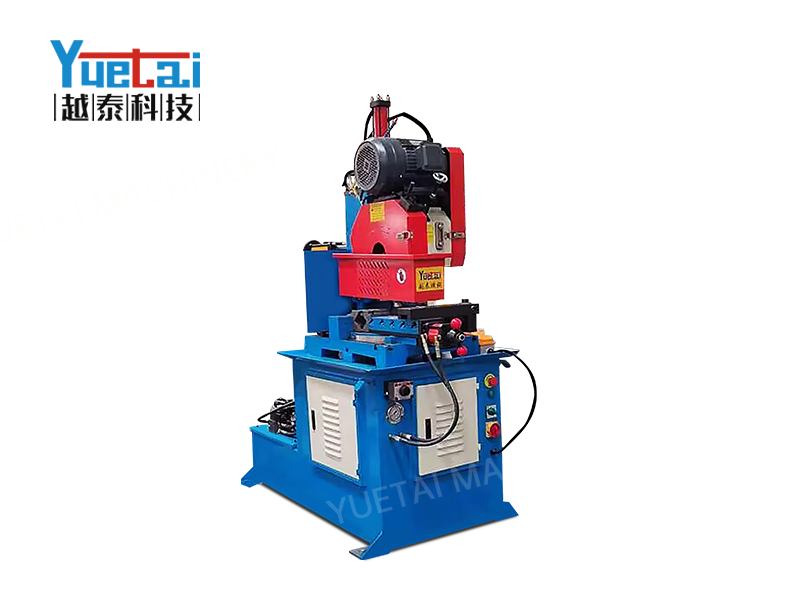

Semi Automatic Hydraulic Pipe Cutting Machine
- Direct supply from the manufacturer
- Order phone：0086-18915699468
- E-mail：megan@yuetaimachine.com
Detail
|
Item |
Type |
Max. Processing Dimension |
Cutting position |
Cutting angle |
|
1 |
○ |
Φ120 mm *8mm |
Straight |
90°-45° |
|
2 |
□ |
100mm*100mm*8mm |
Straight |
90°-45° |
|
3 |
∟ |
80mm*140mm*8mm |
Straight |
90°-45° |
|
4 |
● |
Φ50mm |
Straight |
90°-45° |
|
5 |
■ |
40mm*40mm |
Straight |
90°-45° |
|
No. |
Item |
Description |
|
Model |
YT425Y-2A |
|
|
1 |

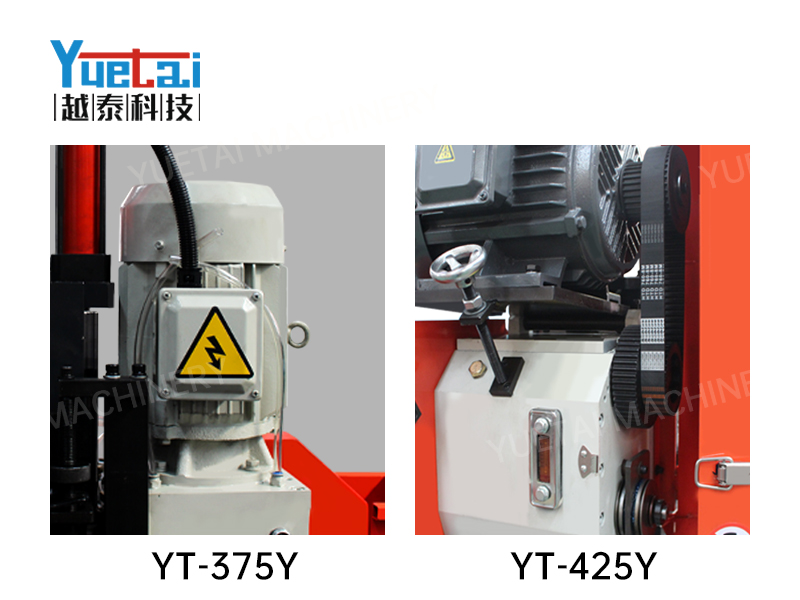

Motor power |
28-3.6kw 4/6 pole change |
|
2 |
Voltage |
380V 50HZ / customerized |
|
3 |
Hydraulic Oil Pump |
2.2kw |
|
4 |
Max. Clamp Degree |
140mm |
|
5 |
Suitable Blade |
Φ300～Φ450mm |
|
6 |
Sawing Angle |
90°-45° |
|
7 |
Dimension |
1200×1400×2000mm |
|
8 |
Machine weight |
850kg |

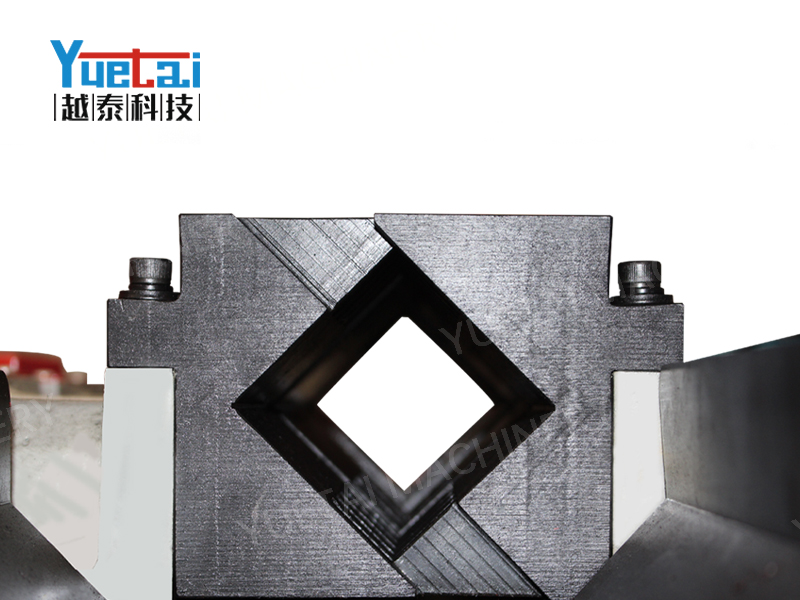

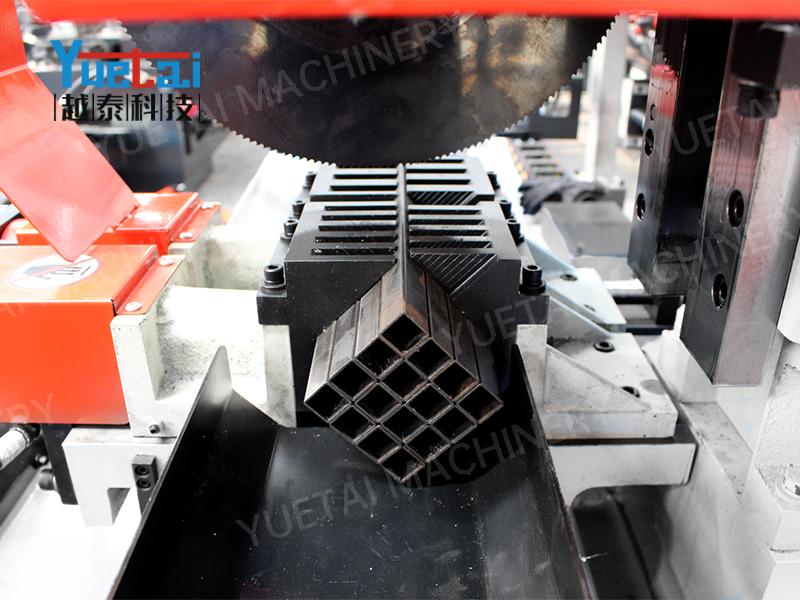

- Self-Centering vise with two sides clamping to solidly hold the workpiece
- Ensure a smooth and burr-free cutting surface
- Low operation noise and low pollution working environment
- Fast, Precise, Clean. More economical, faster in cutting, more precise, and cleaner.
- Mitre Cutting. Saw Head can be swiveled either direction at various degrees for miter cutting
- Providing excellent precision in angle accuracy
- Equipped with an electrical cooling pump and a large coolant tank
- Ensure excellent working temperature on the Saw Blade and the Work Piece
- Ensure smooth cutting surface and longer blade life
- Round Tube
- Square Tube
- Rectangular Tube
- Oval Tubes
- C-shaped profiles
- Mild Steel, Stainless Steel, and Aluminum materials
