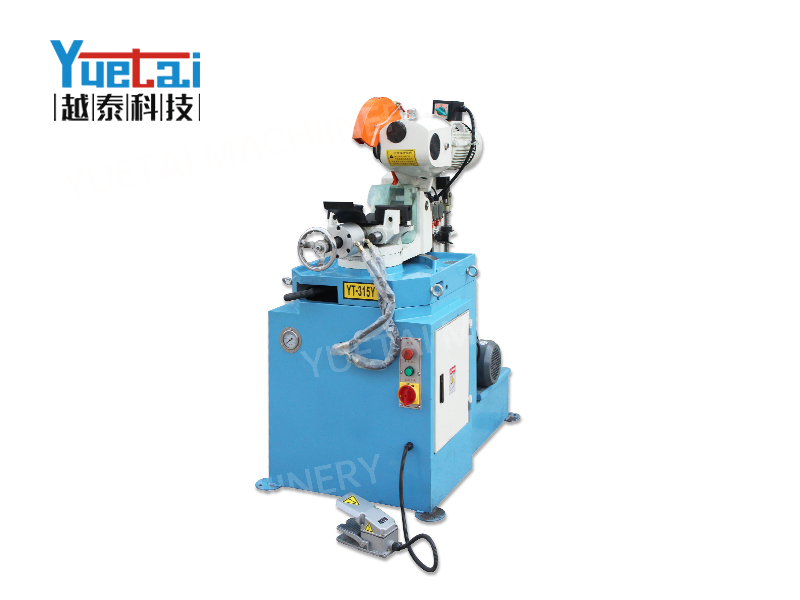

Semi Automatic Pipe Cutting Machine
- Direct supply from the manufacturer
- Order phone：0086-18915699468
- E-mail：megan@yuetaimachine.com
Detail
|
Main Model |
YT-315B |
Remarks |
||
|
|
|
90° |
45° |

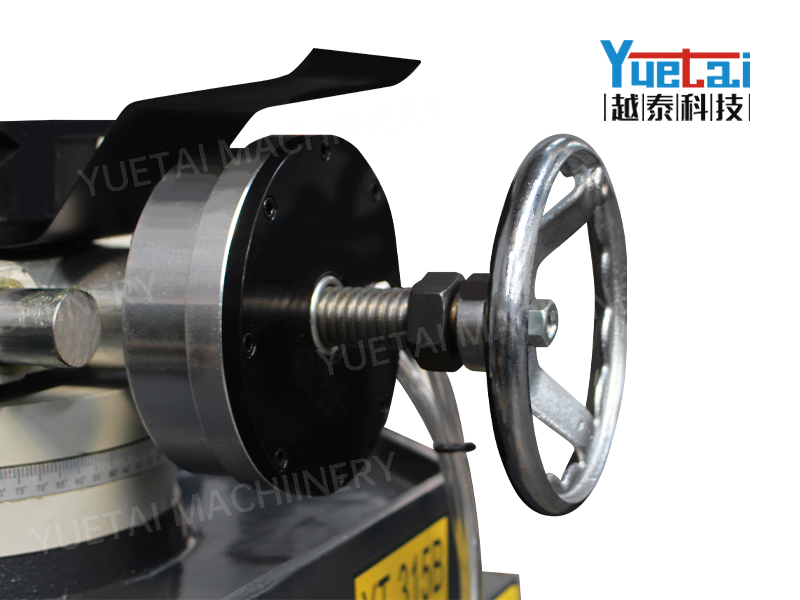

Manual Feed |
|
□ |
80X80 mm |
60X80 mm |
||
|
○ |
Φ90 mm |
Φ80 mm |
||
|
● |
Φ30 mm |
Φ25 mm |
||
|
■ |
35X35 mm |
35X35 mm |
||
|

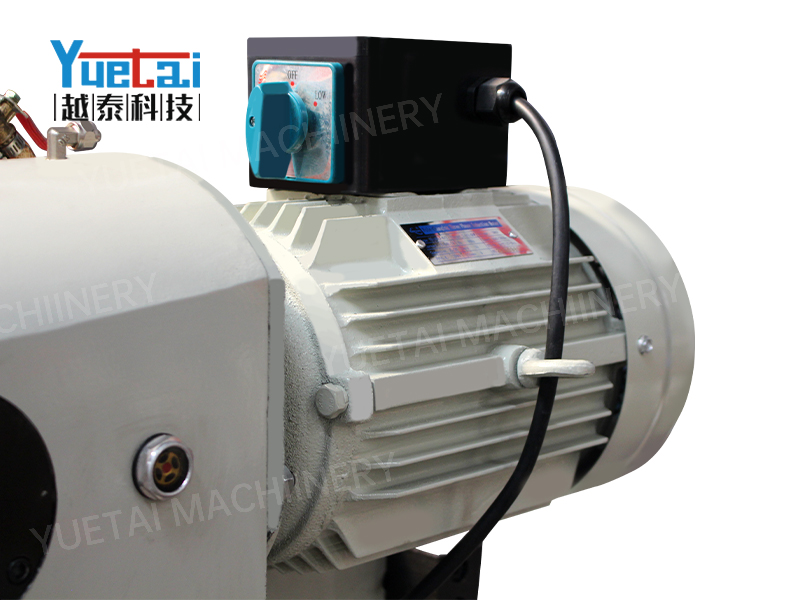

Motor Power |
2.4/3.0Kw |
|||
|
Rotating Speed |
96/48RPM |
|||
|
Max Clamp |
Φ100 |
|||
|
Saw Blade Diameter |
Φ 250-325 |
|||
|
Dimension |
500mmX550mmX1700mm |
|||
|
Weight |
260Kg |
|||

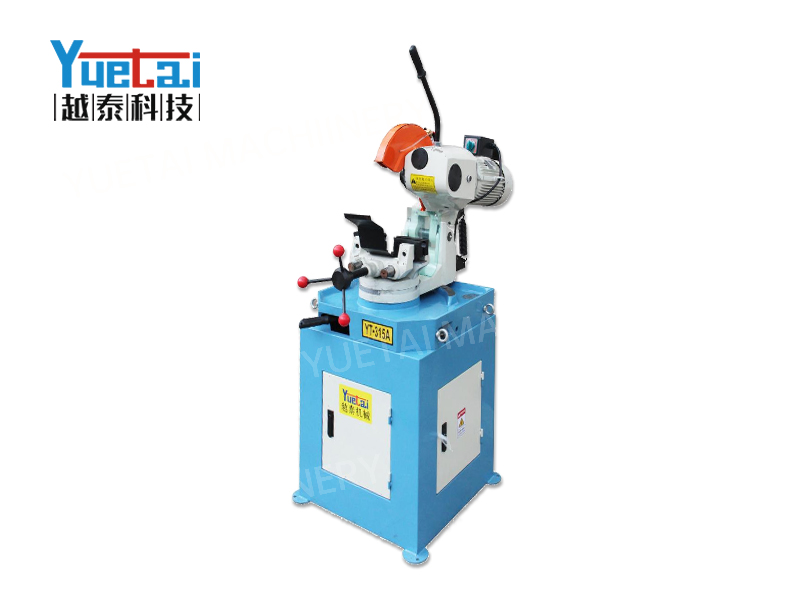

Semi Automatic Pneumatic Pipe Cutting Machine
- Manual operation.

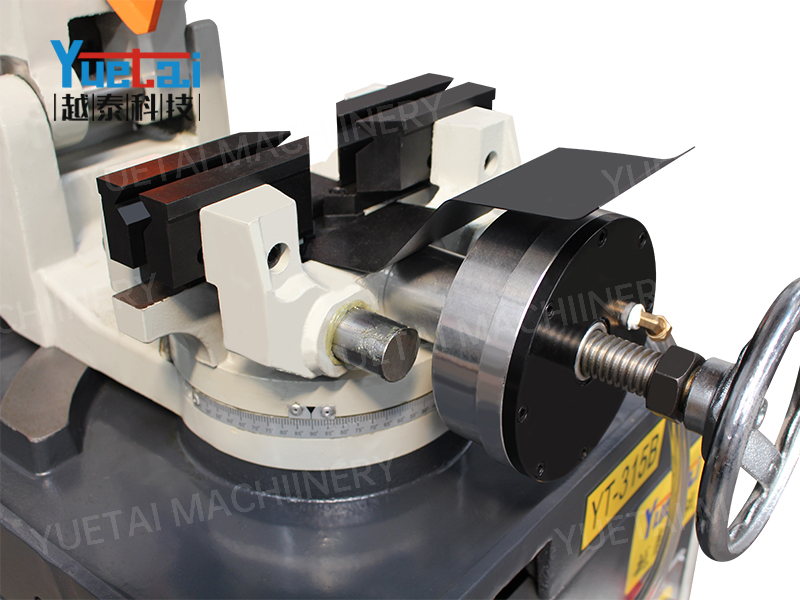

- Double vises.
- Sawblade HSS Ø250~ Ø275mm,Ø250mm.(standard)
- 2 Speeds.
- 220V, single phase, 60 RPM. (optional)
- Movable guard. (optional)

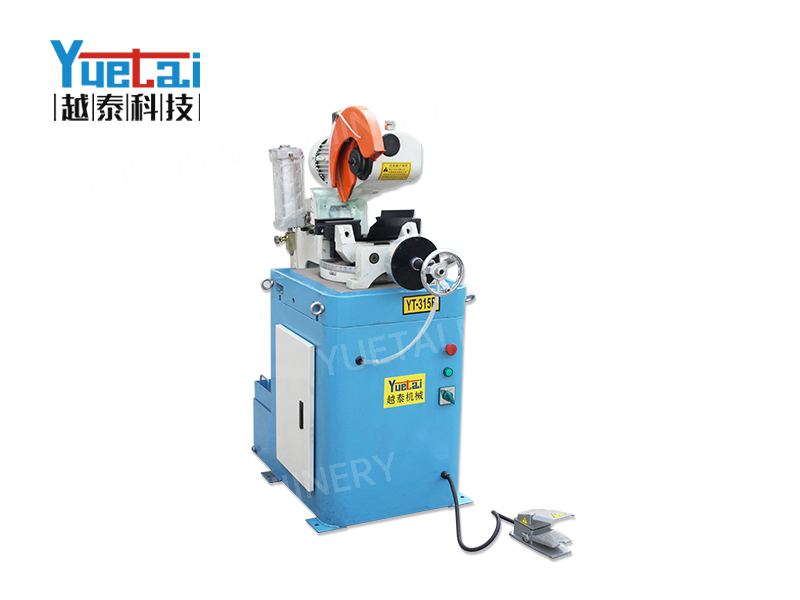

Semi Automatic Pneumatic Pipe Cutting Machine
- Automatic pneumatic single clamping.
- Automatic cutting feed.
- Sawblade HSS Ø250 ~ Ø300mm, Ø300mm. (standard)
- 2 Speeds.
- Movable guard. (optional)

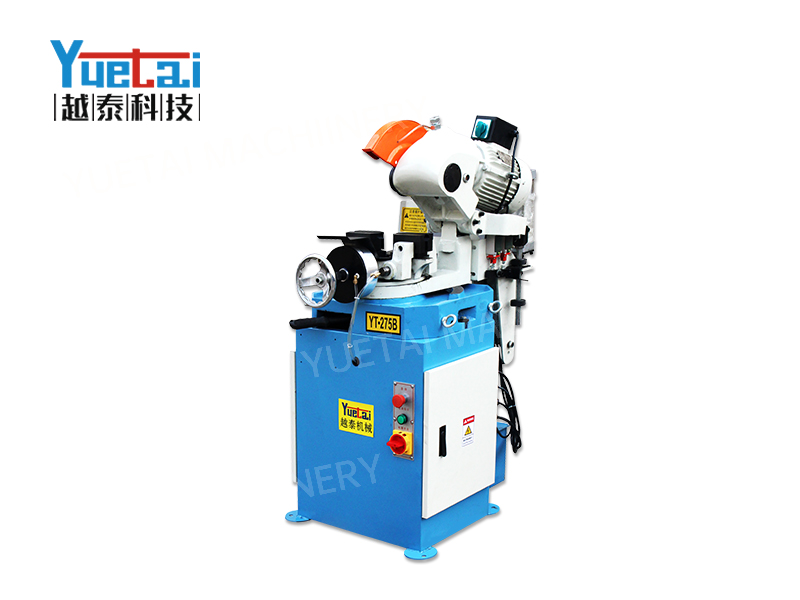

Semi Automatic Pneumatic Pipe Cutting Machine
- Semi-automatic operation for clamping and cutting off
- Sawblade HSS Ø250 ~ Ø300mm, Ø300mm. (standard)
- Saw blade, movable safety guard, cutting fluid.

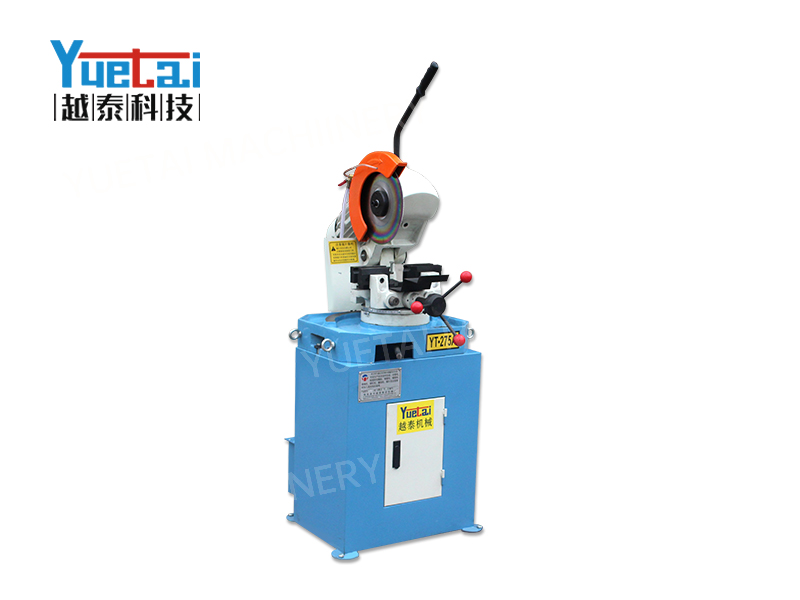

Semi Automatic Pneumatic Pipe Cutting Machine
- Motor, switch, complete cooling system, adjustable stop, service tools.
- Automatic pneumatic double clamping

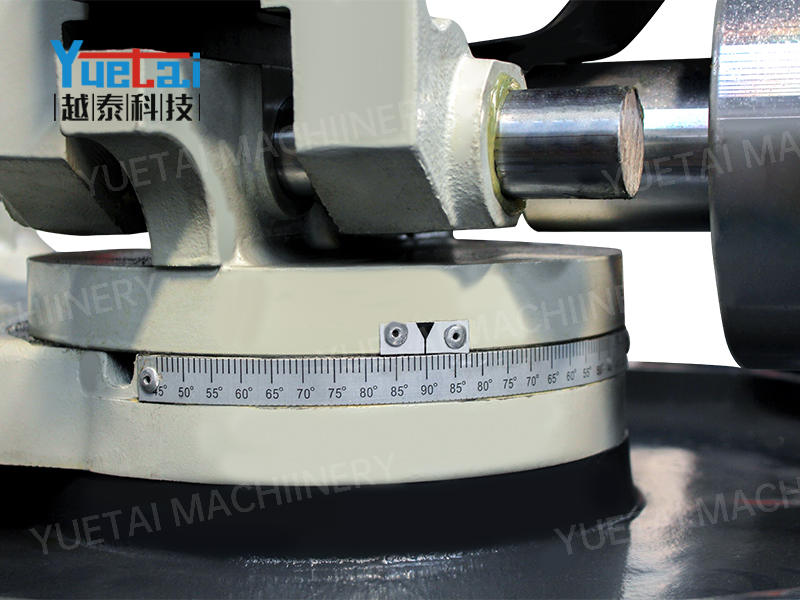

- Manual feed materials Cutting degree 45°-90°

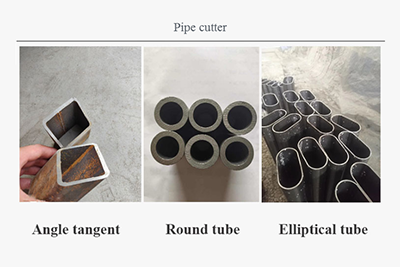

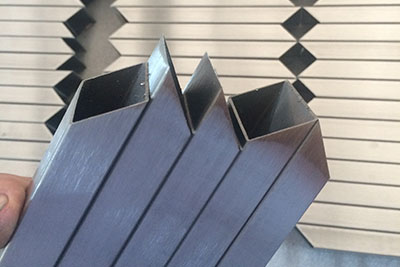

Application Industry
